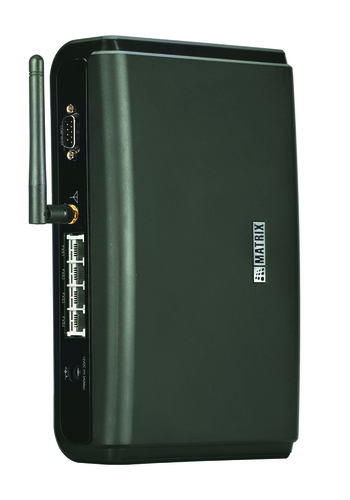

Scalable GSM/3G/4G To Analog Voice Gateway

30000 आईएनआर/टुकड़ा

Request To Call Back जांच भेजें

मूल्य और मात्रा

Specifications:

System Capacity:
Expansion Slots	12
Expansion Cards	4 GSM/3G/4G SIM per Interface Card 8/16/20 FXS per Interface Card
मोबाइल Port:
Frequency Bands	Quad-Band GSM850, EGSM900, DCS1800, PCS1900 Tri-Band WCDMA 850/1900/2100 MHz or Tri-Band WCDMA 900/1900/2100 MHz
Compliance	ETSI GSM Phase2/2+
SIM Interface	1.8, 3V SIM Interface
Antenna	Panel Mount or Extended Cable Antenna 1.8/3.0 dBi, 50 SMA (Male) Connector
FXS Port:
Physical Connector	RJ11
Dialing	DTMF and Pulse (10/20PPS)
CLI Presentation	DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI
Call Maturity	Polarity Reversal
Power Supply:
Input	Option 1 (Mains): 100-240 VAC, 47-63 Hz Option 2 (DC): 48VDC +/- 20%
Power Consumption	50W (Typical)
Mechanical:
Dimensions (WxHxD)	41.2x16.0x25.4cm (16.22"x6.29"x10.0")
Unit Weight	6.5kg(14.3lbs)
Shipping Weight	9.5kg(20.9lbs)
Mounting Options	Wall Mount, Table Top and 19" Rack Mount
Environmental:
Operating Temperature	-10 C to +50 C (14 F to +122 F)
Storage Temperature	-40 C to +85 C (-40 F to +185 F)
Operating Humidity	5-95% RH (Non-Condensing)
Storage Humidity	0-95% RH (Non-Condensing) at 40 C
