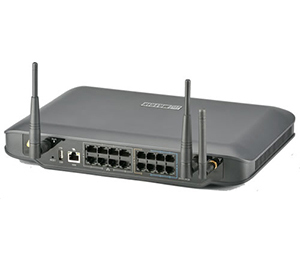

Voice And Data Convergence Device

Voice And Data Convergence Device
Voice And Data Convergence Device
Product Code : 201
Brand Name : Matrix
Product Specifications
  • Product Type
  • IP-PBX
  • Application
  • A single box offering functionality of VPN, Data Router, Wi-Fi access point, IP-PBX
  • Dimension(L*W*H)
  • 32X5X20 Centimeter (cm)
  • Material
  • ABS Plastic
Product Description

Voice and Data Convergence Device:

NAVAN CNX200 is a voice and data convergence device that caters to communication need of  small businesses with upto 24 employees. The wireless PBX is available in different versions such as:

  • NAVAN CNX244: 4 FXO, 4 FXS, 8 SIP Trunks, 8 Wi-Fi users
  • NAVAN CNX226 2G : 2 FXO, 6 FXS, 8 SIP Trunks, 8 Wi-Fi users and 1 GSM Module
  • NAVAN CNX226 3G: 2 FXO, 6 FXS, 8 SIP Trunks, 8 Wi-Fi users and 1 GSM/3G Module
  • NAVAN CNX226 2G2: 2 FXO, 6 FXS, 8 SIP Trunks, 8 Wi-Fi users and 2 GSM Module
  • NAVAN CNX226 3G2: 2 FXO, 6 FXS, 8 SIP Trunks, 8 Wi-Fi user and 2 GSM/3G Module

 Technical Specifications:

 Technical Specifications:

Voice Trunks and Extensions:

2/4 Analog Lines (FXO)

To Connect Analog Telephone Lines

4/6/8 Analog Users (FXS)

To Connect Single Line Telephones, Fax, PoS devices

8 VOIP (SIP) Trunks

To Subscribe Services from 8 Different SIP/VoIP Providers
Ready Interoperability with leading VoIP Carriers

Up to 24 VOIP Users

24 Users (8 Pre-activated, Another 16 with Licence Key)
Matrix SPARSH VP248 IP Phones, SIP Phones, PC Softphones, Mobile Extensions

Up to 2 GSM

To Make Voice Calls over Cellular GSM Networks
Quad-Band GSM (850/900/1800/1900 MHz) Support

Up to 3G/GSM

To Make Voice Calls and Access High-speed Internet over 3G/HSPA Networks
Tri-Band UMTS/HSPA (850/900/1800 MHz and 900/1800/2100 MHz) Support


Built-in Gateways for Call Routing between GSM, VoIP and PSTN lines

Call Management

Call hold/transfer/forward/park/conference, Toll control, Class of service, Account codes, Hunt groups, Day/Night modes, Speed dial and lot more.

VOIP Telephony:


SIPv2 (RFC3261)

VOIP Codecs

G.711 (A/μ Law), G.723, G.729AB, GSM-FR and iLBC

VOIP Channels

12 VOIP Channels

Concurrent VOIP Calls

6 Concurrent VOIP Calls

Call Forking

Parallel Ringing on Maximum Three IP Devices

Fax over IP

T.38 and Pass-Through

Quality of Service


Echo Cancellation

G.168 Line Echo Cancellation

Dynamic DNS

Client to subscribe Dynamic DNS service

Peer-to-Peer Calls

1000 Entries


For IP Devices located behind NAT Router and LAN

VOIP Security


Data Networking:

LAN Switch

8 10/100 Mbps Switched LAN Ports

WAN Options
(with Auto Fall-back)

Ethernet WAN - 1 10/100 Mbps WAN Port
3G WAN - 2 3G/HSPA Modules (DL/UL – 7.2/5.76 Mbps)
USB Port – 3G/GSM/CDMA/EVDO USB Modem Connectivity

Quality of Service (QoS)

Applications, DSCP, Destination/Source MAC/IP

Advance Routing

Port Forwarding/Triggering, Static Route, DNS Proxy, MAC Address Cloning

Networking Protocols


Firewall & Security:

Firewall Protection

SPI Firewall, IDS & IPS, Block Ping/ICMP/IDENT, Port Scan Restriction, DMZ
MAC Address Filtering

Access Control & Content Filtering

Website blocking by URL and Keyword
Block Destination by IP Address and Application Port

Certificate Management

Self-signed and Trusted Root Certificate Generation and Management

Virtual Private Networking:

Virtual Private Network

Remote Access (Server)
Site-to-Site (Client)

VPN Tunnelling

SSL, IPsec, PPTP, L2TP Protocols

VPN Tunnels

Up to 80 VPN Tunnels (20 Tunnels for each SSL, IPsec, PPTP and L2TP)


Hardware based AES/DES/3DES, MPPE



IKE Authentication

Pre-shared Keys, Digital Signature
