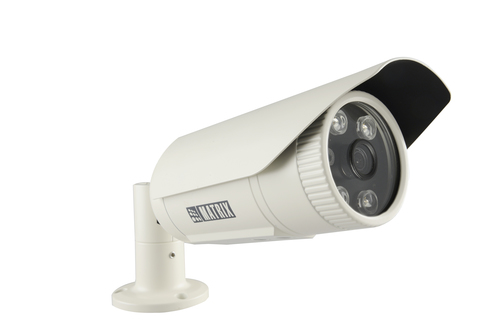

2MP IP CAMERA WITH 6MM LENS

TECHNICAL SPECIFICATIONS

CAMERA

Sensor Type and Size

1/2.8” SONY CMOS (EXMOR Technology STARVIS Series)

Minimum Illumination

0.08Lux @ F2.0 @ 1/25s, No Sens-up allowed for (Color/Monochrome) and 0Lux with IR LED on for (B/W)

Lens Type

Fixed Iris

Focal Length

6mm

FOV

HFOV (degrees) 56°, DFOV (degrees) 66°, VFOV (degrees) 31°

Shutter Speed

1/12500s to 1/25s

SNR

48dB @ 5Lux

Lens Mount

M12 x 0.5

Minimum Object Distance

0.3m

Processor, RAM and Flash

HI-3516A, 4GB and 1GB

Aperture

F1.2

IR LED Type

4 - Array LEDs

IR Range

Up to 30m

IR Type

Auto / Manual

IR Power Consumption

8W @ on and 3.5W @ off

Privacy Zone

3 Zones

NETWORK

Network Protocols

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPOE, SMTP, NTP, SNMP, HTTPS, FTP, ONVIF S

IMAGE AND VIDEO

Video Compression

H.265/H.264/MJPEG

Resolutions

2MP(1920x1080)/720p/D1(704x480)/2CIF(704x288)/CIF(352x240)/QCIF(176x120)

Stream Profiles

Four streams are supported
2MP up to 30 fps(H.265/H.264), D1 up to 5fps(MJPEG), D1 up to 30 fps(H.265/H.264), 720p up to 30 fps(H.265/H.264/MJPEG)

Max. Number of Simultaneous Streams

4

Bitrate

128Kbps - 4Mbps

Frame Rate

1 - 30fps

Image Enhancements

Saturation, Contrast, Brightness, Hue, Sharpness, Rotate, White Balance (Auto/Fluorescent/Incandescent/Sunny)

WDR

True WDR (120dB)

Image Features

ROI, E-PTZ, BLC, Digital Zoom, Image Snapshots, Adaptive Streaming, Smart Streaming (Max. 3 Windows), Unicast/Multicast

DNR

3DNR and 2DNR(Auto/Manual)

Recording Type

Scheduled Edge Recording, Network Recording, Alarm Recording

EVENTS AND ACTIONS

Events

Motion Detection, View Tamper, Line Intrusion, Directional Motion, Trip Wire(3 Lines), Zone Intrusion(3 zones), IP-Conflict, Network-Disconnect, Storage Alert

Actions

Email with Snapshot/TCP/SMS Notifications, Alarm Recording, Image/Clip Upload

GENERAL SPECIFICATION

Communication Interface

10Base-T/100BaseTX Ethernet (RJ-45)

SD Card

Up to 128GB(Micro SD)

Power Supply

12V/2A, Poe (IEEE 802.3af)

Power Consumption

7 Watt

Operating Temperature/Storage Temperature

0 to 50 Degree / (-)20 to 60 Degree

Operating Humidity

Less than 90% RH

Certifications

BIS,CE, IP66, FCC Part-15 Class-B

System Requirements

Windows7 and above, Browser: IE-8 and above, Plugins: IE-ActiveX, Google Chrome and Mozilla-VLC

Dimension

320 X 84.5 X 92.5mm (L X H X W)

Weight and Color

920gm & White (Beige)

Material Type

Aluminum
