Compact Digital PBX

Product Details:

Product Type Digital PBX
Application 3- Party Conferences, Abbreviated Dialing, Facility to add desired numbers in either denied or allowed lists, Alternate Number Dialing, Auto Redial Certain Numbers, Auto-attendant, Auto Call Back, Caller Line Identification, Caller Line Identification, CLI based Routing, DTMF and FSK, Live Call Supervision, Remote Programming, Programmable Access Codes
Share Your Product:

30000 INR/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Compact Digital PBX Price And Quantity

Price 30000 INR/Piece
Price Range 10000.00 - 100000.00 INR/Piece
Minimum Order Quantity 1 Piece

Compact Digital PBX Product Specifications

Product Type Digital PBX
Application 3- Party Conferences, Abbreviated Dialing, Facility to add desired numbers in either denied or allowed lists, Alternate Number Dialing, Auto Redial Certain Numbers, Auto-attendant, Auto Call Back, Caller Line Identification, Caller Line Identification, CLI based Routing, DTMF and FSK, Live Call Supervision, Remote Programming, Programmable Access Codes

Compact Digital PBX Trade Information

Supply Ability 1000 Piece Per Day
Delivery Time 1 Week
Sample Available Yes
Main Domestic Market All India

Product Description

With our inception, we have successfully been engaged in manufacturing and supplying a wide gamut of quality assured Compact Digital PBX for Small Offices. Offered PBX is manufactured using top notch quality components and contemporary techniques under the guidance of ingenious professionals. Highly demanded at commercial places, it is used for routing the multiple telephone lines at one time. Additionally, this Compact Digital PBX System can be availed from us at marginal prices within promised time frame.

Key Points:

Flawless functioning
Longer service life
Low maintenance
Easy operation

Key Features:

Barge-In

Call Forward (All, Busy, No reply)

Call Park

Call Pick Up (Group, Selective)

Call Privacy

Call Splitting

Call Transfer (On Ringing, Busy, Screened, Trunk to Trunk)

CLI (Caller Line Identification-DTMF

CLI based ECF

CLI based Routing

Continued Dialing

Dial-by-Name

Day Night Mode (Auto, Manual)

Department Call (Pilot Number)

Direct Inward Dialing (DID)

Direct Inward System Access (DISA)

Technical Specifications

Type of Switching	PCM/TDM, Digital Switching, 100% Non Blocking
Processor	16-bit DSP

SLT (Analog Station)

Signaling	Loop Start
Dialing	DTMF and Pulse (10/20PPS)
Off Hook AC Impedance	600/900/Complex
Off Hook Current	39mA Max.
Loop Limit	1800© Max (Excluding Telephone)
On-Hook Voltage (Tip/Ring)	-48V nominal
DTMF detection	ITU-T Q.24
Return Loss	>18dB
Longitudinal Balance	>50dB
Transmission Level Adjust	Tx Gain: -12dB to +6dB, Rx Gain: -12dB to +6dB
Ringing	Trapezoidal 50VRMS/25Hz and Sinusoidal 52VRMS/25Hz
REN	3
CLI Presentation	DTMF,FSK ITU-T V.23 and FSK Bellcore 202
Protection	Over Voltage Secondary Protection
Physical Connector	2.54mm Push Type connector

CO (Central Office)/Two-Wire Trunk (TWT)

Signaling	Loop Start
Loop Limit	1200©
Off Hook AC Impedance	600/900/Complex
Pulse Dialing	10/20 PPS
DTMF Dialing and Reception	ITU-T Q.23 and Q.24
Return Loss	>18dB
Longitudinal Balance	>50dB
Transmission Level Adjust	Tx Gain: -15dB to +10dB. Rx Gain: -15dB to + 10dB
CLI Reception	DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Call Maturity	Delay and Polarity Reversal
Protection	Over Voltage and Over Current Secondary Protection
Physical Connector	2.54mm Push Type connector

Power Supply

Input

External Adapter 12V@2A for VISIONPRO 206, 308, 412

Other Products in 'IP PBX For Small Business' category

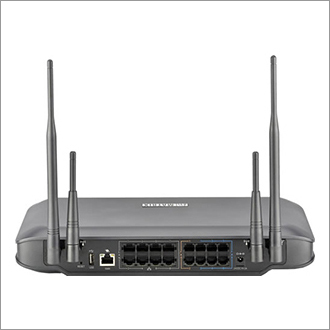

Office In A Box Upto 24 IP Users Price : 30000 INR/Piece Minimum Order Quantity : 1 Application : Small Businesses and Service Providers Product Type : IPPBX

Send Inquiry

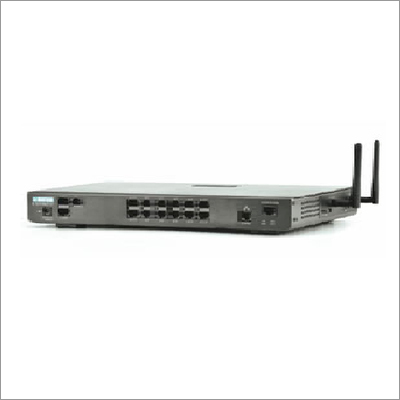

IP-PBX For 10 To 32 IP Users Price : 30000 INR/Piece Minimum Order Quantity : 1
