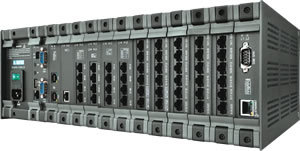

Since our initiation in the year 1991, we have successfully been affianced in manufacturing, exporting and supplying a premium array of Fixed VoIP to T1/E1 PRI Gateway. This gateway is manufactured as per set international standards by ingenious professionals using quality tested components. Provided gateway is used for communication purpose at various industries, offices and call centers. Offered gateway is connects PBX user to the IP network for seamless performance. Our precious clients can buy this T1E1 PRI VoIP Gateway from us at nominal rates within committed delivery time.
Key Points:
Compact size
Superior finish
Rugged design
Low maintenance
Technical Specifications:
Model: | |
SETU VTEP | Gateway with 32 VoIP Channels and 1 T1/E1 PRI Port |
VoIP Port: | |
Protocol | SIPv2, SDP, RTP (RFC 2833) |
Connector | Ethernet (RJ 45) |
SIP Accounts | 32 |
Echo Cancellation | G.168 with up to 128ms Tail length |
Voice Codecs | G.711 (A/µ Law), G.723.1, G.729AB, GSM-FR and iLBC |
ISDN PRI Port: | |
Channels | T1- 23B+D, E1- 30B+D |
Connector | RJ45 |
Operational Mode | Software Configurable NT/TE modes |
Switch Variant | T1 RBS - AT&T 5ESS, DMS-100, US Ni2 |
Framing | T1 RBS - SF-D4/ESF |
Power Supply: | |
Input | External Power AdaptorOutput: 5VDC@2A |
Power Consumption (Typical) | 5W (Typical) |
Other: | |
Dimension (WxHxD) | 16.1x10.1x3.0 cm (6.3”x 4”x 1.18”) |
Mounting Options | Wall Mount, Table Top and Rack Mountable |
Operating Temperature | -10°C to +50°C (14°F to +122°F) |
|
|
![]() |
