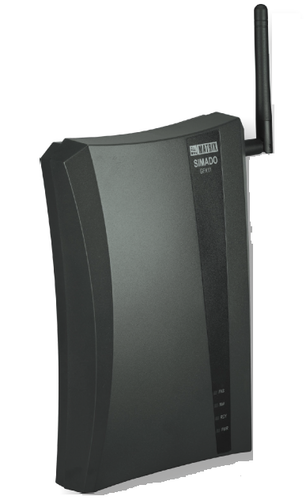

SIMADO GFX11E is a Fixed Cellular Terminal with an in-built battery back up to call for help in a short period of time in emergency situations such as power cut in elevators. User can connect to the hotline number by just lifting the handset in case of power failure.
Key Features:
Technical Specifications
GSM/3G/4G SIM Cards | 1 |
Frequency Bands | Quad-Band GSM850, EGSM900, DCS1800, PCS1900 Tri-Band WCDMA 850/1900/2100 MHz or Tri-Band WCDMA 900/1900/2100 MHz |
SIM Interface | 1.8, 3V SIM Interface |
Compliance | ETSI GSM Phase2/2+ |
Connector | RJ11 |
Dialing and Reception | Pulse and DTMF Dialing |
CLIP | DTMF and FSK CLI Presentation |
Answering and Disconnect Signaling | Polarity Reversal for Call Connect/Disconnect Signaling |
Input | External Power Adaptor 100-240 VAC, 47-63Hz Output: 12VDC@1.25A |
Power Consumption | 5W (Typical) |
Dimension | 13.35 x 19.8 x 4.46 cm (5.26 x 7.80 x 1.76 ) |
Mounting Options | Wall Mount and Table Top |
Operating Temperature | 0oC to +45oC (34oF to +133oF) |
|
|
![]() |
