GSM/3G/4G FCT For Voice Applications

GSM/3G/4G FCT For Voice Applications

Product Details:

  • Product Type GSM Fixed Cellular Terminal
  • Application To connect with rescue forces by just lifting the handset during emergency even in case of power failure
  • Dimension(L*W*H) 13.35x19.8X4.46 Inch (in)
  • Material ABS Plastic
  • Supply Ability : 1000 Piece Per Day
30000 INR/Piece
X

Price And Quantity

  • 1 Piece
  • 10000.00 - 100000.00 INR/Piece
  • 30000 INR/Piece

Product Specifications

  • GSM Fixed Cellular Terminal
  • ABS Plastic
  • 13.35x19.8X4.46 Inch (in)
  • To connect with rescue forces by just lifting the handset during emergency even in case of power failure

Trade Information

  • 1000 Piece Per Day
  • 1 Week
  • Yes
  • All India

Product Description

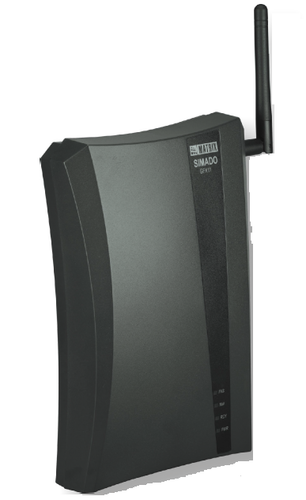

GSM FCTs

SIMADO GFX11E are Matrix range of GSM FCTs that are engineered mainly to be used in the power failure or emergency situations. The person stuck in the emergency just need to pick up the reciever in order to connect with the hotline number or any helpline. This GSM Fixed Cellular Terminal find its application mainly in ATMs, parkades and lifts.

Technical Specifications:

SIMADO GFX11E

GSM/3G/4G SIM Cards

1

Frequency Bands

Quad-Band GSM 850/900/1800/1900MHz
Tri-Band WCDMA 850/1900/2100MHz
Tri-Band WCDMA 900/1900/2100MHz

SIM Interface

1.8, 3V SIM Interface

Compliance

ETSI GSM Phase2/2+

FXS Port:

Connector

RJ11

Dialing and Reception

Pulse and DTMF Dialing

CLIP

DTMF and FSK CLI Presentation

Answering and Disconnect Signaling

Polarity Reversal for Call Connect/Disconnect Signaling

Power Supply:

External Power Adaptor

Input: 100-240VAC, 47-63Hz
Output: 12VDC@1.25A
Power Consumption: 5W (Typical)

Battery

Type: NI-MH AAA 7.2v/800mA
Talk Time Mode: 2 Hours
Idle Mode: 4 Hours

Other:

Dimension

13.35 x 19.8 x 4.46 cm (5.26”x 7.80”x 1.76”)

Mounting Options

Wall Mount and Table Top

Unit Weight

0.395kg (0.87lbs.) Approx.

Operating Temperature

0ËšC to +45ËšC (32ËšF to +113ËšF)
