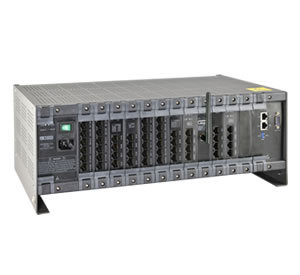

High Density Universal Media Gateway

High Density Universal Media Gateway
High Density Universal Media Gateway
Product Code : SARVAM UMG
Brand Name : Matrix
Product Specifications
  • Product Type
  • Universal Media Gateway
  • Application
  • Seamless connectivity for modern as well as the old age networks
Trade Information
  • Minimum Order Quantity
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Sample Available
  • Yes
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Users use different telecom networks for different purposes. Modern users mainly make and receive calls on new-age networks like VOIP and GSM/3G. Interfacing these new-age networks with  legacy networks and existing PBXs becomes a tough task, SARVAM UMG acts as a bridge for such situations. One of the main benefits of SARVAM UMG is that it can be used with any kind of PBX, SARVAM UMG offers carrier-grade Gateway features such as Integration, Scalability, Flexibility and Reliability. This high density Universal Media Gateway is interoperable with third party IP-PBXs and internet telephony service providers. It's architecture is such that it accommodates the evolving communication needs of any organisation without modifying the existing communication infrastructure.

 Key Features:

  • 3G Network Support
  • Facility to add numbers in allowed or denied lists
  • Automatic Number Translation
  • Fixed Number Dialing
  • Call Detail Recording
  • Caller Line Identification Presentation
  • Configuration Groups
  • Web-based Programming Tools
  • CUG over GSM/3G
  • Least Cost Routing
  • Multi-Stage Dialing

Technical Specifications:

Expansion Slots12
Expansion Cards64 VOIP Channels per Module (Max. 2 Modules)
4 GSM/3G SIM per Interface Card
23/30 Digital (T1/E1 PRI) Channels per Interface Card
8 BRI Channels per Interface Card
4/8/16 FXO Ports per Interface Card
8/16/20 FXS Ports per Interface Card

VOIP Port:

ProtocolSIP v2
Physical ConnectorEthernet (RJ45)
Voice QualityG.168 Echo Cancellation, Layer3 QoS and DiffServ, CNG
Voice CodecsG.711 (A-law, µ-Law), G.723, G.729AB, GSM-FR, GSM-EFR and iLBC Voice Codec
SIP Trunks120

Mobile Port:

Frequency BandsPenta-Band (GSM: 850/900/1800/1900, UMTS: 800/850/900/1900/2100)
Tri-Band WCDMA 850/1900/2100 MHz or Tri-Band WCDMA 900/1900/2100 MHz
ComplianceETSI GSM Phase2/2+
SIM Interface1.8, 3V SIM Interface
AntennaPanel Mount or Extended Cable Antenna
1.8/3.0 dBi, 50 © SMA (Male) Connector

T1/E1/PRI:

Channels2B+D
Physical ConnectorRJ48 (120©)
PersonalityNetwork (NT) and Terminal (TE)
Switch VariantsAT&T 4ESS, AT&T 5ESS, DMS-100, ETSI NET5, ITU-T Q.921, ITU-T Q.931, NTT INS64, US NI2 (National ISDN 2), QSIG ECMA, France VN Signalling
FramingESF for T1 and CEPT1 (with/without CRC) for E1

ISDN BRI Port:

Physical ConnectorRJ45
Operational ModeSoftware Configurable NT/TE modes
InterfaceS/T Interface, Point to Point and Point to Multipoint
Switch VariantAT&T 4ESS, DMS-100, ETSI NET3, ITU-T Q.921, ITU-T Q.931, NTT INS64, US NI1 (National ISDN 1), France VNx Signalling

FXO Port:

Physical ConnectorRJ11
DiallingDTMF and Pulse (10/20PPS)
Loop Limit1200W
CLI PresentationDTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI

FXS Port:

Physical ConnectorRJ11
DiallingDTMF and Pulse (10/20PPS)
CLI PresentationDTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI
Call MaturityPolarity Reversal

Power Supply:

InputOption 1 (Mains): 100-240 VAC, 47-60 Hz
Option 2 (DC): 48VDC +20% to -15%
Power Consumption170W (Typical)
