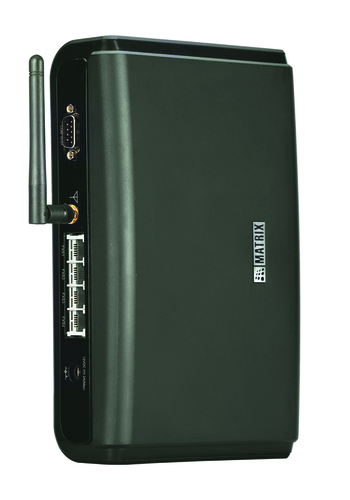

Scalable GSM/3G/4G To Analog Voice Gateway

Scalable GSM/3G/4G To Analog Voice Gateway

Product Details:

  • Supply Ability : 1000 Piece Per Day
30000 INR/Piece
X

Price And Quantity

  • 10000.00 - 100000.00 INR/Piece
  • 1 Piece
  • 30000 INR/Piece

Trade Information

  • 1000 Piece Per Day
  • 1 Week

Product Description

Specifications:

System Capacity:
Expansion Slots 12
Expansion Cards 4 GSM/3G/4G SIM per Interface Card
8/16/20  FXS per Interface Card
Mobile Port:
Frequency Bands Quad-Band GSM850, EGSM900, DCS1800, PCS1900
Tri-Band WCDMA 850/1900/2100 MHz or Tri-Band WCDMA 900/1900/2100 MHz
Compliance ETSI GSM Phase2/2+
SIM Interface 1.8, 3V SIM Interface
Antenna Panel Mount or Extended Cable Antenna
1.8/3.0 dBi, 50 SMA (Male) Connector
FXS Port:
Physical Connector RJ11
Dialing DTMF and Pulse (10/20PPS)
CLI Presentation DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI
Call Maturity Polarity Reversal
Power Supply:
Input Option 1 (Mains): 100-240 VAC, 47-63 Hz
Option 2 (DC): 48VDC +/- 20%
Power Consumption 50W (Typical)
Mechanical:
Dimensions (WxHxD) 41.2x16.0x25.4cm (16.22"x6.29"x10.0")
Unit Weight 6.5kg(14.3lbs)
Shipping Weight 9.5kg(20.9lbs)
Mounting Options Wall Mount, Table Top and 19" Rack Mount
Environmental:
Operating Temperature -10 C to +50 C (14 F to +122 F)
Storage Temperature -40 C to +85 C (-40 F to +185 F)
Operating Humidity 5-95% RH (Non-Condensing)
Storage Humidity 0-95% RH (Non-Condensing) at 40 C






MATRIX COMSEC PVT. LTD.
